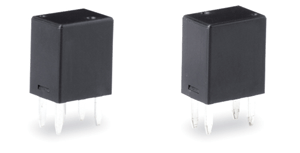

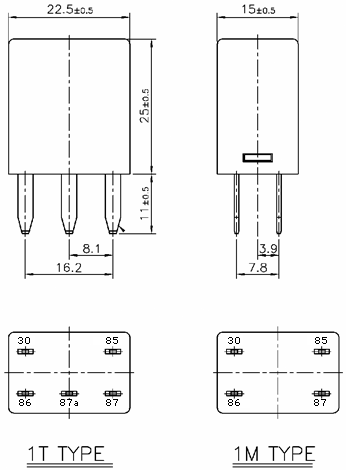

| Series |
MICRO 280 |
| Contact Arrangement |
1 Form A |
1 Form C |
| Contact Material |
Ag Alloy (cadmium free) |
| Rated Voltage |
12V |
| Operating Voltage |
Max. 7.2V |
| Release Voltage |
Min. 1.0V |
| Rated Current |
Standard |
Standard |
| 20A |
10A/20A |
| Coil Resistance |
None |
100Ω±10% |
100Ω±10% |
| Resistor |
90Ω±10% |
90Ω±10% |
| Diode |
100Ω±10% |
100Ω±10% |
Voltage Drop
At Rated Current |
N.O. Contact |
Initial 150mV Max. |
Initial 150mV Max. |
| After Life Test 200mV Max. |
After Life Test 200mV Max. |
| N.C. Contact |
|
Initial 200mV Max. |
| |
After Life Test 250mV Max. |
| Ambient Temperature Range |
-40℃ ~ +125℃ |
| Operate Time |
Max. 10ms |
| Release Time |
Max. 10ms |
| Insulation Resistance |
Min. 20MΩ (at 500VDC) |
| Dielectric Strength |
500VAC for 1 minute
(between coil and contact, between open contacts) |
| Mechanical Endurance (Without Load) |
Min. 1x106 |
Electrical Endurance
(At Rated Load) |
Min. 0.1x106 |
| Rated Load |
Resistor |
20A |
10A/20A |
| Lamp |
15A |
7A/15A |
| Motor |
15A |
7A/15A |
